Biometric Reader
iDBio

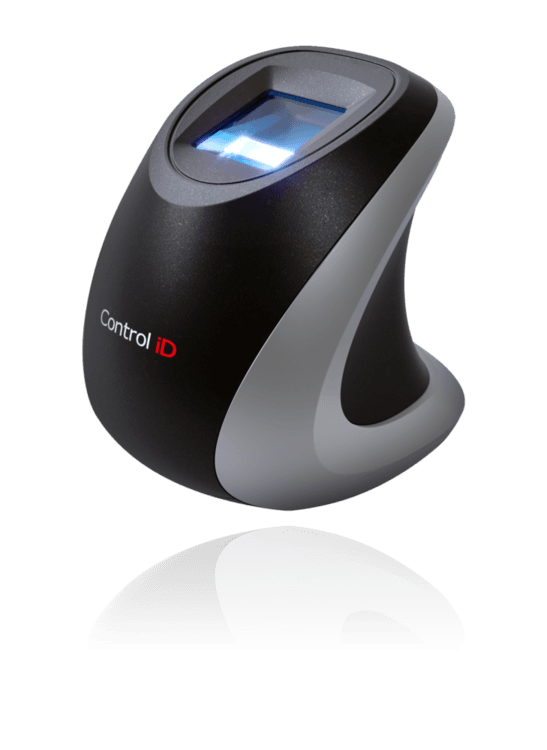

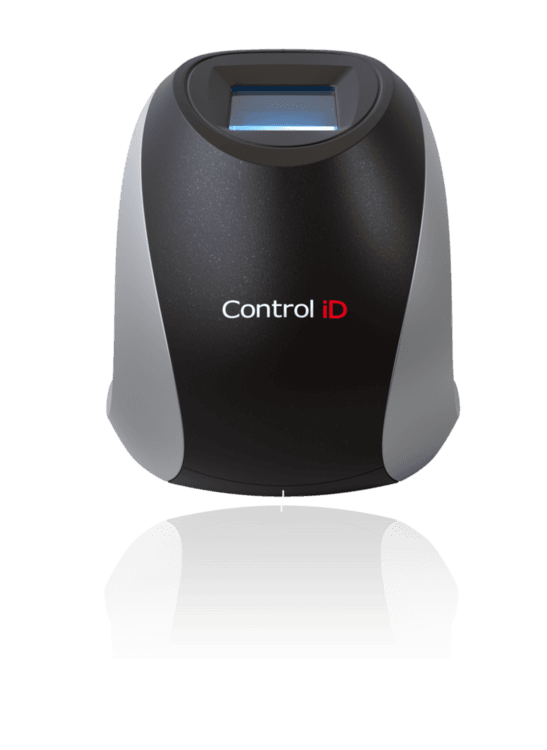

The iDBio Biometric Reader is equipped with the latest in optical technology, enabling fingerprint collecting with high quality and precision. Through a specially designed prism, it can obtain clear images in the most adverse conditions (such as very dry or wet fingers and the incidence of sunlight).

Its high-speed USB interface and integration kit with leading operating systems (Windows, Linux and Android) ensure user friendliness and agility in authentications, enabling biometric identification and validation of more than 1,000 users per second.

  • USB Interface 2.0
  • High resolution (500 DPI)
  • More than 1000 fingerprints (1: N) per second (Pro version)
  • Local storage of up to 3000 fingerprints
  • Modern and innovative design
  • User friendly

Optical Features

  • Scanner area21 x 19 mm
  • Image Resolution500 DPI
  • Image format256 levels of gray

Communication and Interfaces

  • USB Interface 2.0High Speed ​​Communication
  • Sound beeperInternal Buzzer for better usability
  • Built-in USB cable1.5m length for added flexibility

Integration

  • DriversWindows (XP/2003/Vista/7/8/10/11), Linux and Android
  • Integration kitAvailable for free for Windows, Linux and Android
  • Integration ExamplesAvailable for free in several languages ​​(C, C ++, C #, Java, etc)

Identification (PRO version only)

  • SpeedValidation of more than 1000 users in less than 1s
  • ReliabilityHigh performance algorithm with excellent FAR and FRR
  • Fingeprint StorageLocal storage of up to 3000 fingerprints
  • Stand-alone and integrated modeCapture image or identification in iDBio itself

General Features

  • Dimensions58 x 67 x 58 mm (W x H x D)
  • Equipment weight130g
  • Power5V (USB)
  • Total Consumption< 500 mW

Documents
