Access Control
iDProx USB

With a modern and ergonomic design, iDProx USB is the ideal device to automate card and RFiD tags reading process.

Its USB 2.0 interface with its dedicated hardware allow quick and efficient data transmition from a card or tag to a computer, without the need of any additional software.

Besides that, the product allows changing the output format to facilitate integration with a wide range of existing systems on the market.

  • USB Interface 2.0
  • Plug and Play
  • Compatible with Mifare and 125kHz technologies*
  • Modern and innovative design
  • User friendly

* Available on select models

Compatible Technologies

  • Proximity Cards MIFARE ™ or 125 kHz ASK Technologies*
  • Proximity Tags MIFARE ™ or 125 kHz ASK Technologies*

Communication and Interface

  • USB Interface 2.0 High speed communication
  • Audible signal Internal buzzer for better usability
  • Integrated USB cable 1.5m length for greater flexibility

Integration

  • Drivers Windows (XP/2003/Vista/7/8/10/11), Linux and Android
  • Integration Kit Available for free for Windows, Linux and Android
  • Examples of integration Available for free in several languages (C, C++, C#, Java, etc)

General Characteristics

  • General dimensions 67 mm x 67 mm x 69 mm (W x H x D)
  • Equipment weight 120g
  • Power 5V (supplied via USB)
  • Total Consumption < 500 mW

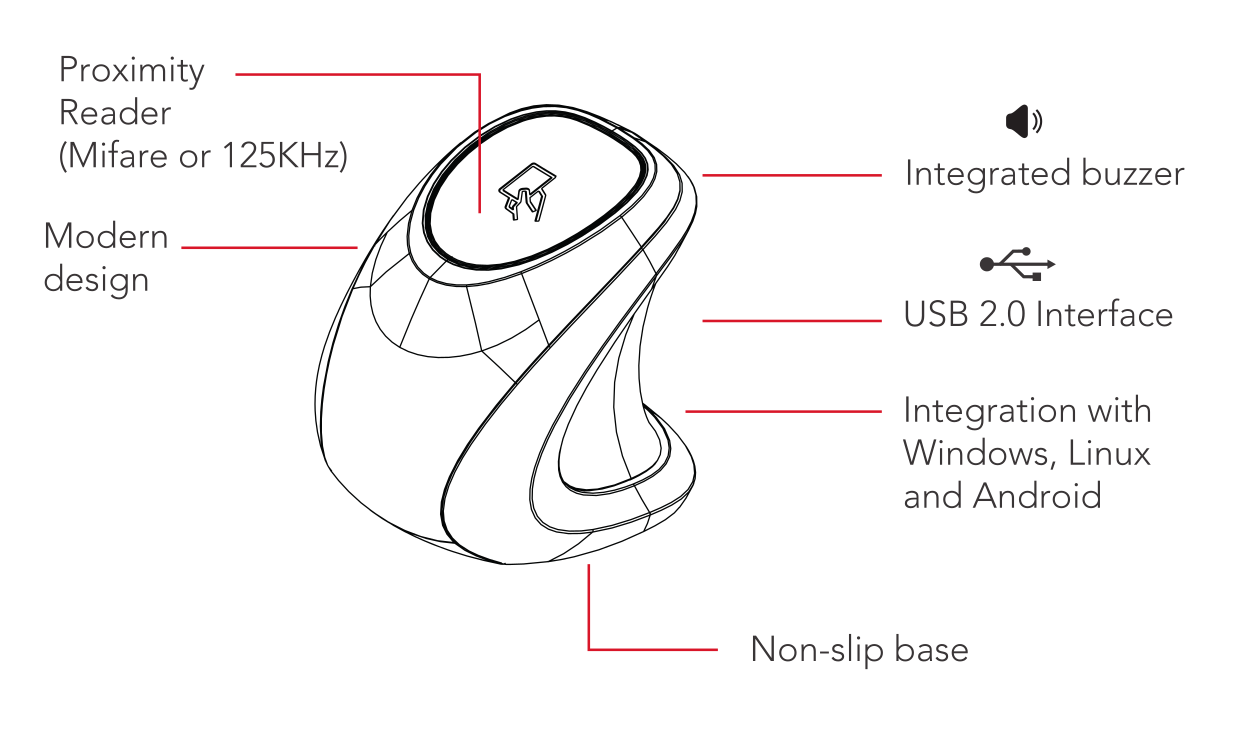

Interconnection diagram

iDProx USB Interconnection Diagram

* Available on select models

Documents
