Access Control

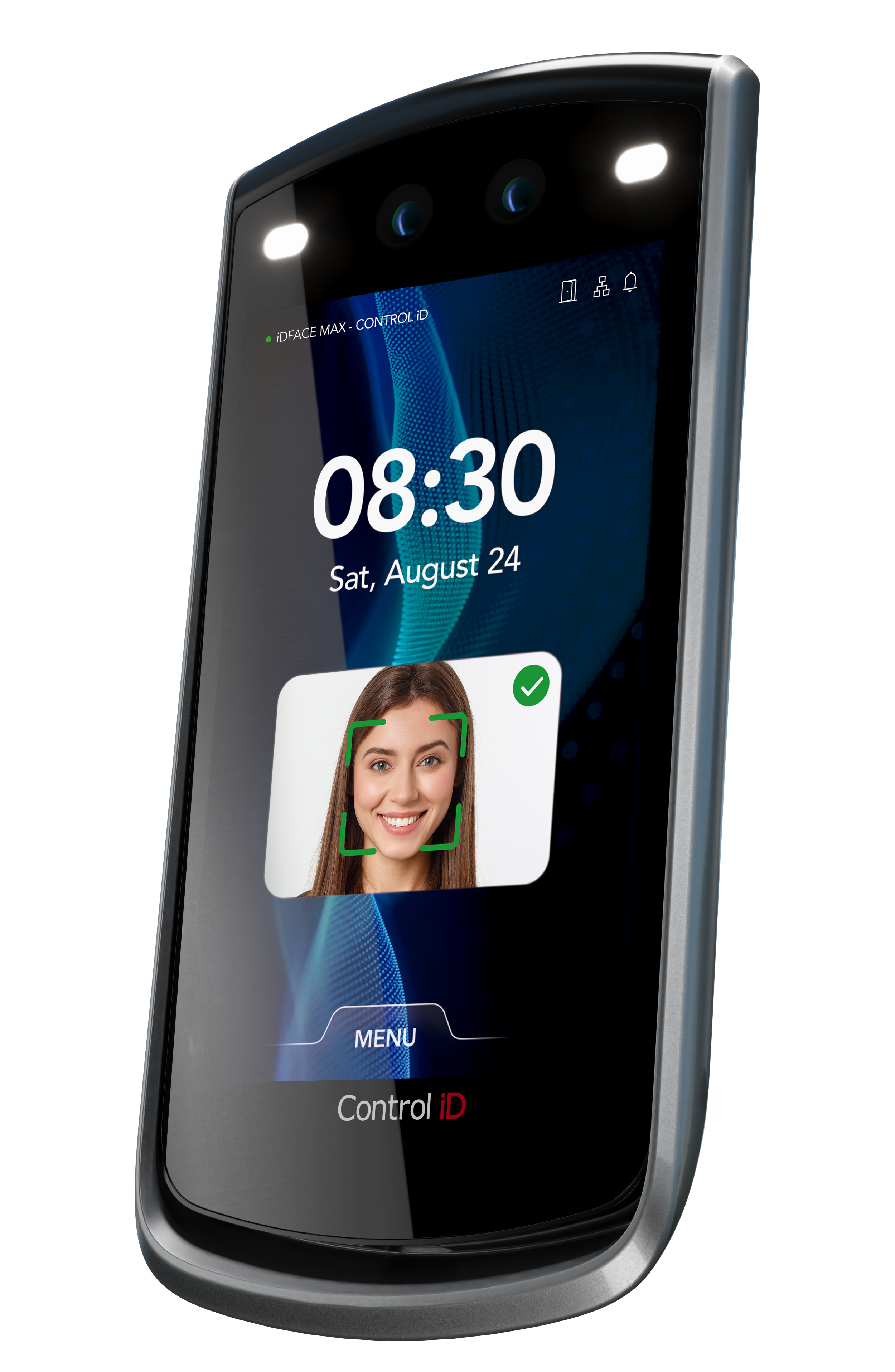

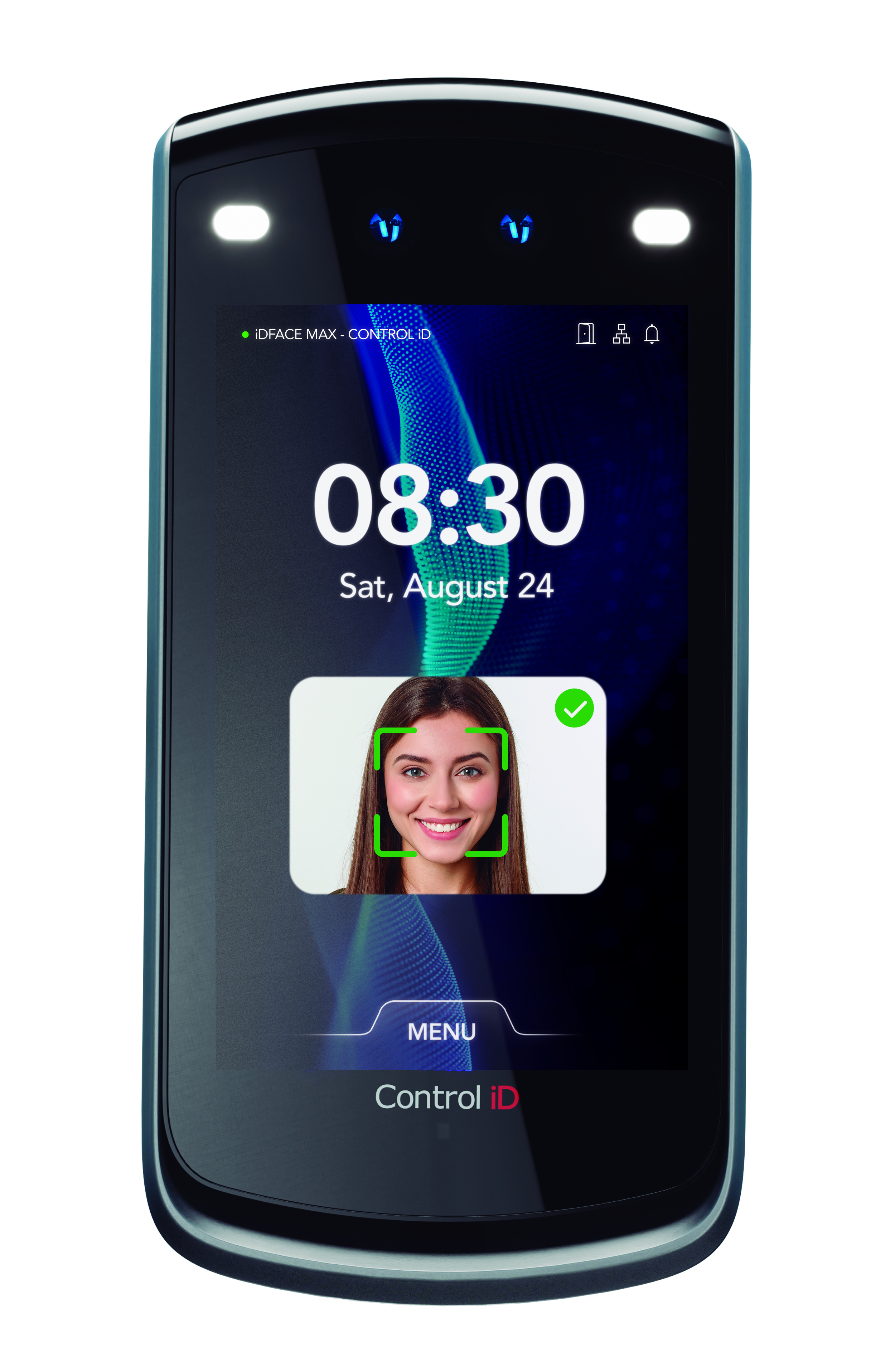

iDFace Max

With a modern design and elegant finish, iDFace Max is the ideal device for monitoring and controlling the entry and exit of people through facial identification technology.

Its advanced algorithm and high-quality cameras allow the identification of up to 100,000 faces (1:N) with face liveness detection and identification of users with and without a mask.

iDFace has an integrated SIP intercom*, TCP/IP, USB, Wi-Fi* and Bluetooth* connectivity.

The device also features a large 7” LCD touchscreen display that allows easy and intuitive navigation for configuring access rules and viewing reports.

*Available on select models

  • 7” touchscreen display
  • Identification of up to 100,000 faces with face liveness detection*
  • IP65 ingress protection rating
  • Customized access rules according to groups and schedules
  • Integrated SIP intercom*
  • TCP/IP, USB, Wi-Fi* and Bluetooth connectivity*
*Available on select models

Access Control

  • Number of Users Capacity for more than 200,000 registered users
  • Number of Faces Capacity for up to 100,000* faces with live face detection
  • Access Rules Access rules according to schedules and departments
  • Door Control Via external access module and/or internal relay
  • Sensors and REX button 1 REX button input on the external access module
    1 input for open door sensor on the external access module
  • Relay Output 1 internal relay and 1 on the external module up to 30VAC/5A
  • Wiegand Input 1 port on the external access module
  • Wiegand Output 1 port on the external access module

*Available on select models

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host port
  • Wi-Fi Integrated Wi-Fi communication (optional)
  • LTE Connection module via LTE (optional)
  • SIP Intercom Built-in G711 compatible SIP intercom (Pro version)

OSDP

  • Peripheral Device OSDP support as a Peripheral Device via RS-485 interface

Identification Methods

  • Facial Identification Two 1080p Full HD cameras (visible light and infrared light)
  • Proximity Cards (optional) MIFARE™ or 125kHz ASK or HID
  • Password User identification through PIN and password
  • QR Code User identification through QR Code

User Interface

  • LCD Touchscreen 7” TFT Color LCD Display (800x1280) with Capacitive Touchscreen
  • Integrated Web Software Complete access control management from your browser Embedded Access Management Software
  • Audio Built-in speaker and microphone

General Characteristics

  • General dimensions 119.4mm x 34.6mm x 247 mm (W x D x H) - Terminal
    52mm x 52 mm x 22 mm (W x D x H) - External Access Module
  • Equipment weight950g - Terminal
    35g - External Access Module
  • Power input External 12V 2A source or PoE (IEEE802.3af)
  • Ingress Protection Rating IP65

Interconnection Diagram

iDFace Max Installation Diagram
