Turnstile

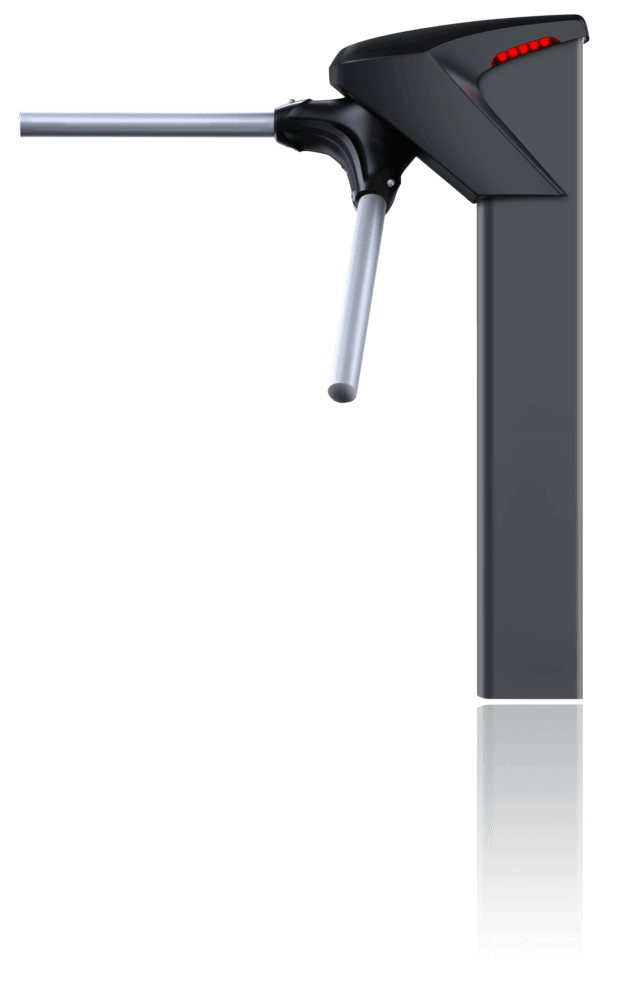

iDBlock Black

With an innovative and ultra-quiet mechanism, the iDBlock turnstile can be used in any type of environment and facility. The product has a touch screen display enabling friendly and intuitive user interaction.

In addition, iDBlock can operate either as standalone and offline, capable of managing a thousand fingerprints, or connected to the internet, through the online mode. It enables the registration of up to 100 thousand fingerprints.

  • Revolutionary ultra-quiet mechanism
  • 4.3" touchscreen color display
  • TCP/IP communication
  • Stand alone and online operation
  • Modern and innovative design

Access Control

  • Flow Control Bidirectional system
  • Anti-passback At every turn, the system identifies direction and completion
  • Card Collector Optional unit to improve visitor control, collecting badges on exit
  • User Capacity More than 200.000 registered users
  • Fingerprint Capacity (depending on model) Capacity of 2.000/10.000 fingerprints in offline mode and more than 100,000 for online mode
  • Access Rules Customized by time, group and department
  • Transaction Log Capacity Over 200.000 records

Mechanism

  • Reliability MCBF (Mean Cycles Between Failures) - 800.000 cycles
  • Silent operation Quiet and smooth rotation mechanism

Modes of Identification

  • Fingerprint 500 DPI Optical Fingerprint reader
  • Proximity Reader MiFare / RFID 125kHz (ASK / FSK / PSK) / HID
  • Password Numeric password
  • QR Code QR Code reader (optional)

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 native RS-485 port with a 120Ω termination (optional)
  • GPRS and Wi-Fi GPRS and Wi-Fi optional connection modules

User Interface

  • LCD TouchscreenLCD TFT Colour Display with 4.3" (480x272) resistive touchscreen
  • InternationalizationMultilanguage user interface
  • Embedded Web Software Complete access control software manageable from your browser Embedded Access Management Software

General Features

  • Power Supply 12V/2A internal power supply included
  • Power Consumption 3.5W (300mA) nominal

Interconnection Diagram

iDBlock Installation Diagram
