Alarm

Internal Alarms

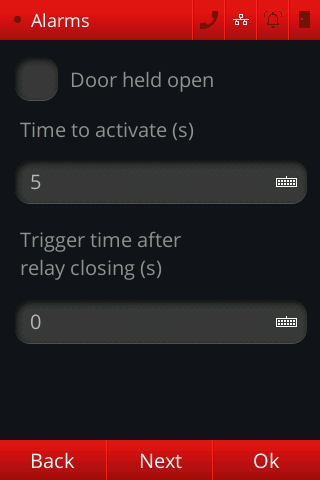

To access the internal alarms menu, follow the path [MENU] -> [SETTINGS] -> [ALARMS] -> [INTERNAL ALARMS].

The settings that can be changed on this page are:

Door held open: Enables/Disables the open door sensor.
Time to activate: Time for the alarm to trigger after the sensor is activated.
Trigger time after relay closing: Time for triggering the open door alarm after the door has been closed by the relay.

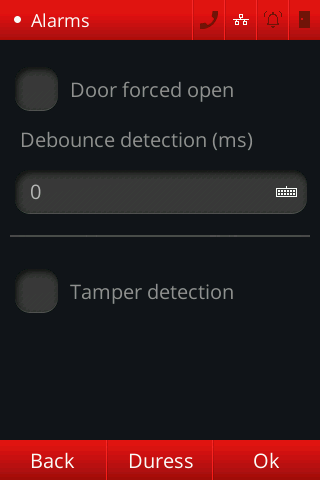

Door forced open: Enables/Disables the door tampering sensor.
Debounce detection: Time required for the door tampering detection.
Tamper detection: Enables/Disables the device tampering sensor. Attempts to remove the device from its wall mount will trigger this alarm.

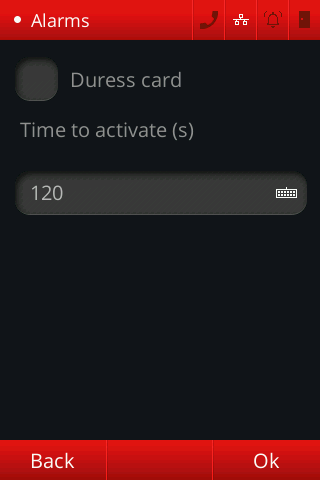

To access the panic alarms menu, press the [PANIC] button on the internal alarms menu.

The settings that can be changed on this page are:

Duress card: Enables/Disables the alarm triggered by holding a card close to the device for the time specified by the "Time to activate" parameter.
Time to activate: Time that the card must be held close to the device sensor before the duress alarm is activated.

After setting the parameters, press the [OK] button to save and apply the settings.

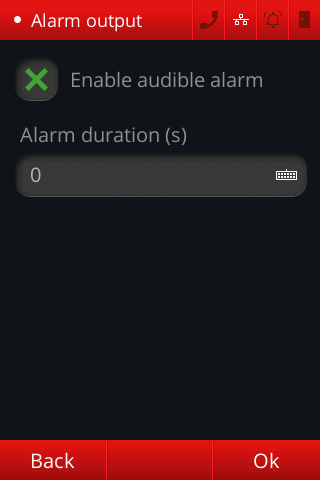

To access the alarm output menu, follow the path [MENU] -> [SETTINGS] -> [ALARMS] -> [ALARM OUTPUT].

The settings that can be changed on this page are:

Enable audible alarm: Enables/Disables the sound alarm produced by the device when an alarm is triggered.
Alarm duration: Time for the sound alarm to trigger.

After setting the parameters, press the [OK] button to save and apply the settings.
