Introduction

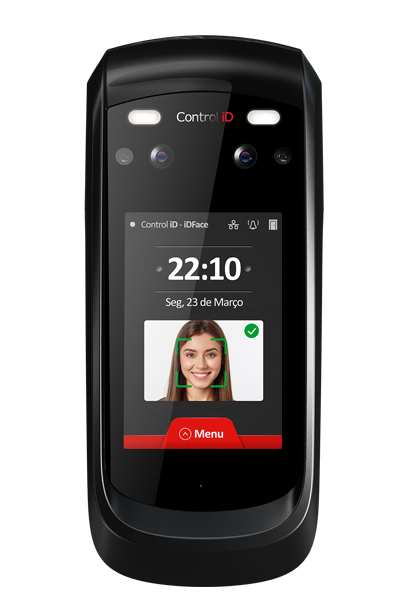

With a modern and innovative design, the iDFace is the ideal device for monitoring and controlling the entry and exit of people through facial recognition technology. Its high-quality algorithm allows for liveness detection, authenticating users wearing masks, and identifying up to 30,000 faces (1:N) and (1:1). For communication, the device supports SIP intercom and has TCP/IP and USB connections. Additionally, the device features a 3.5” capacitive touchscreen display and embedded web software that facilitate the management of access rules, report viewing, and general operation settings of the device.
This manual aims to assist the user in configuring and operating their iDFace.
Technical specifications
| Features | Description |
|---|---|
| Access rules | Release rules according to schedules and departments |
| Cameras | Two 720p HD cameras (Visible Light and Infrared Light) |
| Number of users | Up to 200,000* |
| Number of faces | Up to 30,000 (According to Pro license)* |
| Number of cards | Up to 200,000* |
| Facial Recognition | 1:N to 1:1 identification Liveness detection |
| Audio | Built-in speaker and microphone |
| Processor | 1.2 GHz Quad-Core |
| TCP/IP Communication | 1 native 10/100 Mbps Ethernet port |
| Integrated Web Software | Complete access control management software via browser |
| USB | 1 USB Host 2.0 port |
| Door control | Through the included External Activation Module (EAM) |
| REX button input | 1 in the activation module |
| Open door detection | 1 in the activation module |
| Wiegand Input | 1 in the activation module |
| Wiegand Output | 1 in the activation module |
| GPRS | Optional external communication module |
| RFID Technologies | 125kHz ASK, Mifare or HID* |
| Screen | 3.5" color LCD display (320x480) with capacitive touchscreen |
| Dimensions | 76.7 x 54.5 x 174.0 mm (W x D x H) |
| Weight | 240g controller / 35g module |
| Protection rating | IP65 |
| Power supply | External 12V 2A power supply |
*According to model
Important information
In Brazil, the use of this device as an Electronic Time Attendance System is in compliance with labor legislation (according to Ordinance 671/2021) as an attendance collector to a REP-P solution. Therefore, we recommend using the iDFace as REP-P Time Attendance collector together with our RHiD. Please visit the RHiD for more information. For other regions, please observe applicable regulations if required.
Storage and operating conditions
To ensure the proper functioning and durability of the iDFace, it is recommended to be installed in an environment protected from direct sunlight, rain, and other climatic phenomena. Additionally, the operating and storage conditions described below must be respected.
Operating conditions:
- Room temperature between 0ºC and 40ºC;
- Relative humidity between 10% and 80%;
- Altitude below 3,000m;
Storage conditions:
- Temperature between 0ºC and 50ºC;
- Relative humidity between 10% and 80%;
- Altitude below 10,000m;
International System of Units
All the information contained in this manual follows the International System of Units (SI) measurement standard. Feel free to convert the data to the unit you feel most comfortable with.
