iDFace Max

The access controller iDFace Max has three types of custom signals: SecBox, internal relay and extension GPIOs. Each of these signals has its own particularities and customization possibilities to adapt to the most diverse needs.

SecBox

The Security Box (SecBox) is an External Drive Module (MAE) that connects to the iDFace Max via the four-pin connector on the back of the device.

These pins are used for the following functions:

Pin Color Description
+12V Red Power supply +12V
A Blue Communication A
B Blue/White Communication B
GND Black Power supply ground

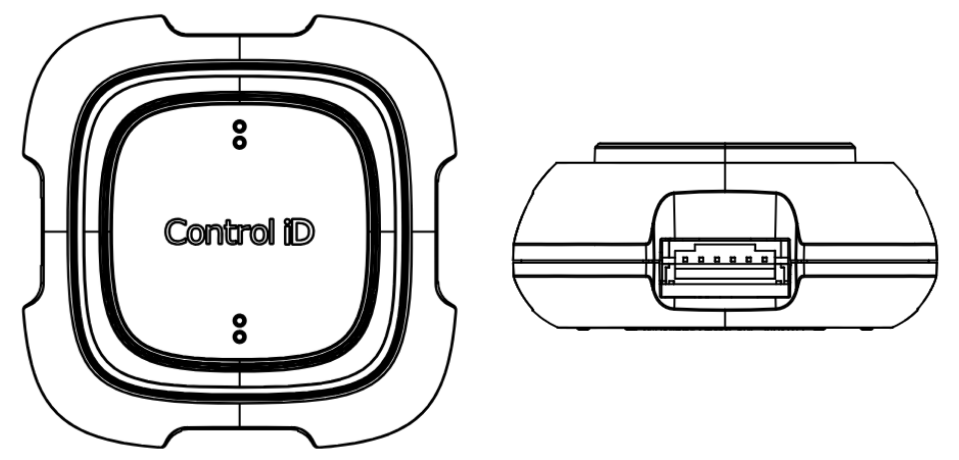

SecBox offers a six-pin connector for external door/relay control, shown in the image below.

These six pins follow the following specification:

Pin Color Description
DS Purple Door Sensor input
GND Black Ground (Common)
BT Yellow REX input
NC Green Normally Closed pin
COM Orange Common pin
NO Blue Normally Open pin

SecBox Configuration

The external relay can be configured via API using the following parameters:

Field Type Description
sec_box_out_mode string SecBox output mode:
"0": Normal (Authorized)
"1": Only Rejected
"2": Bell
"3": Alarm

Each output mode set by sec_box_out_mode works as follows:

Output mode Value Description
Normal (Authorized) 0 Triggers the SecBox when an action is performed that prompts normal authentication
Only Rejected 1 Triggers the SecBox when an action is performed that leads to a rejection of authentication on the device
Bell 2 Triggers the SecBox when an action is performed that activates the device's bell
Alarm 3 Triggers the SecBox when an action is performed that activates the device's alarm

Example request for configuring the SecBox

The request must be made via the POST method to the /set_configuration.fcgi endpoint.

This request sets the output mode of the SecBox to operate in normal (authorized) mode:

$.ajax({
    url: "/set_configuration.fcgi?session=" + session,
    type: "POST",
    contentType: "application/json",
    data: JSON.stringify({
        "general": {
            "sec_box_out_mode": "0"
        }
    })
});

Internal relay

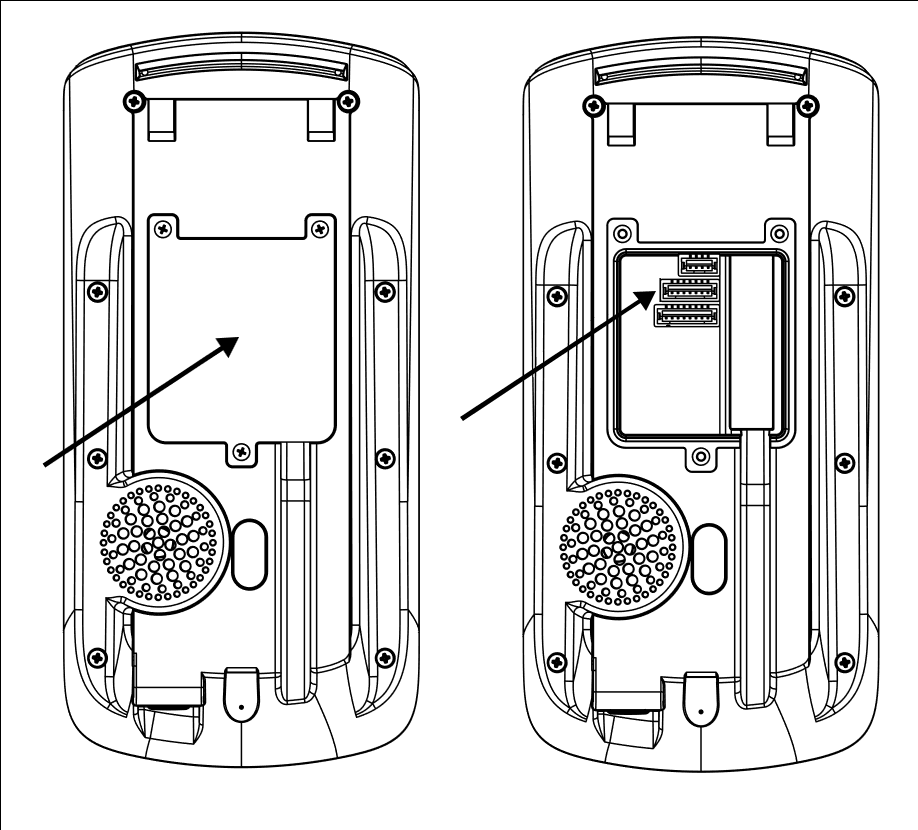

On the back of the iDFace Max you'll find a seven-pin connector.

This connector has the following pin configuration:

Pin Color Description
GPIO1 Yellow Optional pin 1
GPIO2 Yellow Optional pin 2
GPIO3 Yellow Optional Pin 3
GND Black Ground (Common)
NC Green Normally Closed pin
COM Orange Common pin
NO Blue Normally Open pin

In addition to the external relay in the SecBox, iDFace Max has an internal relay that can be configured according to the needs of the installation. To access the internal relay, there are three important pins: NC, COM and NO. Using these three pins, you can attach an external module and trigger it according to the desired behavior.

Internal relay configuration

The internal relay can be configured via API using the following parameters:

Field Type Description
relay_out_mode string Relay output mode:
"0": Normal (Authorized)
"1": Only Rejected
"2": Bell
"3": Alarm
relay1_enabled string "0": Relay disabled
"1": Relay enabled
relay1_auto_close string "0": Auto close disabled
"1": Auto close enabled
relay1_timeout string Timeout in milliseconds
min: 100
max: 10000

Each output mode set by relay_out_mode works as follows:

Output mode Value Description
Normal (Authorized) 0 Triggers the internal relay when an action is performed that prompts normal authentication
Only Rejected 1 Triggers the internal relay when an action is performed that leads to a rejection of authentication on the device
Bell 2 Triggers the internal relay when an action is performed that activates the device's bell
Alarm 3 Triggers the internal relay when an action is performed that activates the device's alarm

Example request for configuring the internal relay

The request must be made via the POST method to the /set_configuration.fcgi endpoint.

This request enables the internal relay to operate in normal mode (authorized), with auto close enabled and opening timeout of 3 seconds:

$.ajax({
    url: "/set_configuration.fcgi?session=" + session,
    type: "POST",
    contentType: "application/json",
    data: JSON.stringify({
        "general": {
            "relay1_enabled": "1",
            "relay_out_mode": "0",
            "relay1_auto_close": "1",
            "relay1_timeout": "3000"
        }
    })
});

Extension GPIOs

On the back of the iDFace Max you'll find a seven-pin connector.

This connector has the following pin configuration:

Pin Color Description
GPIO1 Yellow Optional pin 1
GPIO2 Yellow Optional pin 2
GPIO3 Yellow Optional Pin 3
GND Black Ground (Common)
NC Green Normally Closed pin
COM Orange Common pin
NO Blue Normally Open pin

To extend the iDFace Max's operating possibilities, you can use the extension GPIOs. These consist of three pins: GPIO1, GPIO2 and GPIO3.

You can configure the individual behavior of these GPIOs, so that the device performs the desired action when it receives a signal via its respective pin.

Extension GPIOs configuration

The GPIOs can be configured via API using the following parameters.

Field Type Description
gpio_ext1_mode
gpio_ext2_mode
gpio_ext3_mode
string Operation mode:
"0": Disabled
"1": Enable facial
"2": Alarm
"3": Emergency
"4": Lockdown
"5": Intercom
"6": Interlock
"7": Open relay
"8": Open SecBox
"9": Open relay/SecBox
gpio_ext1_idle
gpio_ext2_idle
gpio_ext3_idle
string Activation:
"0": Active level 1, normally closed (NC)
"1": Active level 0, normally open (NO)

Each operation mode established by gpio_extN_mode (where N indicates the GPIO number) works as described in the table below.

Some signals are triggered by the end of the pulse, while others are triggered by the signal level. * Pulse: The expected operation cycle is: idle->active->idle. The action is executed on the falling edge of the pulse (i.e. active->idle transition). * Signal: The signal is expected to be supplied constantly. Active: executes the action continuously; idle: interrupts the action.

If the same operating mode is assigned to more than one GPIO, its operation will correspond to an OR logic, where at least one of the GPIOs needs to be activated for the respective operating mode to be executed. The Enable facial operating mode is an exception, because if more than one GPIO is configured as such, all those GPIOs must be activated for the functionality to take effect, corresponding to an AND logic.

Operation mode Value Detection Multiple GPIOs Description
Disabled "0" --- --- GPIO does not perform any operations
Enable facial "1" Signal AND logic Activating the GPIO enables identification
Identification remains disabled as long as GPIO is not active
Alarm "2" Pulse OR logic Activating the GPIO triggers the alarm
Emergency "3" Pulse OR logic Activating the GPIO puts the device into emergency mode
Lockdown "4" Pulse OR logic Activating the GPIO puts the device into lockdown mode
Intercom "5" Pulse OR logic Activating the GPIO connects the device to the configured SIP server
Interlock "6" Signal OR logic Activating the GPIO prevents the door from opening
The door can receive commands to open normally while the GPIO is idle
Open relay "7" Pulse OR logic Activating the GPIO triggers the device's internal relay
Open SecBox "8" Pulse OR logic Activating the GPIO triggers the external relay in the SecBox
Open relay/SecBox "9" Pulse OR logic Activating the GPIO triggers the device's internal relay together with the SecBox's external relay

Example request for configuring the extension GPIOs

The request must be made via the POST method to the /set_configuration.fcgi endpoint.

This request configures GPIO1 to open the relay with normally closed behavior, GPIO2 disabled and GPIO3 to open the SecBox with normally open behavior:

$.ajax({
    url: "/set_configuration.fcgi?session=" + session,
    type: "POST",
    contentType: "application/json",
    data: JSON.stringify({
        "general": {
            "gpio_ext1_mode": "7",
            "gpio_ext1_idle": "0",
            "gpio_ext2_mode": "0",
            "gpio_ext3_mode": "8",
            "gpio_ext3_idle": "1"
        }
    })
});
